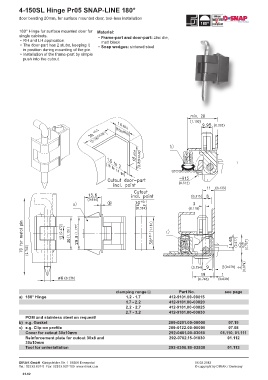

4-150SL Hinge Pr05 SNAP-LINE 180°

door bending 20mm, for surface mounted door, tool-less installation

180° Hinge for surface mounted door for Material:
single cabinets. • Frame-part and door-part: zinc die,
• RH and LH application. matt black
• The door-part has 2 stubs, keeping it • Snap wedges: sintered steel
in position during mounting of the pin.
• Installation of the frame-part by simple
push into the cutout.

clamping range 1 Part No. see page
a) 180° Hinge 1.2 - 1.7 412-9101.00-00015
1.7 - 2.2 412-9101.00-00020
2.2 - 2.7 412-9101.00-00025
2.7 - 3.2 412-9101.00-00030
POM and stainless steel on request!
b) e.g. Gasket 209-0201.00-00000 07.19
c) e.g. Clip-on profile 209-0122.00-00000 07.08
Cover for cutout 30x10mm 292-0401.00-03010 01.110, 01.111
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.82
