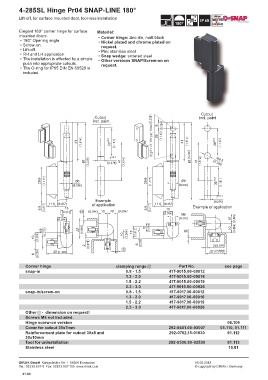

4-285SL Hinge Pr04 SNAP-LINE 180°

Lift-off, for surface mounted door, tool-less installation

Elegant 180° corner hinge for surface Material:
mounted doors. • Corner hinge: zinc die, matt black
• 180° Opening angle. • Nickel plated and chrome plated on
• Screw-on. request.
• Lift-off. • Pin: stainless steel
• RH and LH application. • Snap wedge: sintered steel
• The installation is effected by a simple • Other versions SNAP/Screw-on on
push into appropriate cutouts. request.
• The O-ring for IP65 DIN EN 60529 is
included.

Corner hinge clamping range 1 Part No. see page
snap-in 0.8 - 1.5 417-9015.00-00012
1.3 - 2.0 417-9015.00-00016
1.5 - 2.2 417-9015.00-00019
2.3 - 3.0 417-9015.00-00026
snap-in/screw-on 0.8 - 1.5 417-9017.00-00012
1.3 - 2.0 417-9017.00-00016
1.5 - 2.2 417-9017.00-00019
2.3 - 3.0 417-9017.00-00026
Other 1 - dimension on request!
Screws M6 not included.
Hinge screw-on version 06.109
Cover for cutout 30x7mm 292-0401.00-03007 01.110, 01.111
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 01.113
Stainless steel 10.81
