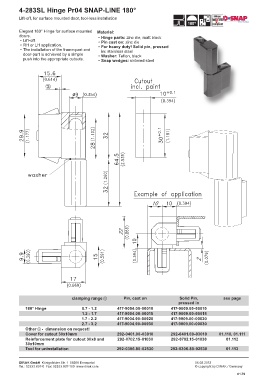

4-283SL Hinge Pr04 SNAP-LINE 180°

Lift-off, for surface mounted door, tool-less installation

Elegant 180° Hinge for surface mounted Material:
doors. • Hinge parts: zinc die, matt black
• Lift-off. • Pin cast on: zinc die
• RH or LH application. • For heavy duty! Solid pin, pressed
• The installation of the frame-part and in: stainless steel
door-part is achieved by a simple • Washer: Teflon, black
push into the appropriate cutouts. • Snap wedges: sintered steel

clamping range 1 Pin, cast on Solid Pin, see page
pressed in
180° Hinge 0.7 - 1.2 417-9004.00-00010 417-9009.00-00010
1.2 - 1.7 417-9004.00-00015 417-9009.00-00015
1.7 - 2.2 417-9004.00-00020 417-9009.00-00020
2.7 - 3.2 417-9004.00-00030 417-9009.00-00030
Other 1 - dimension on request!
Cover for cutout 30x10mm 292-0401.00-03010 292-0401.00-03010 01.110, 01.111
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.79
