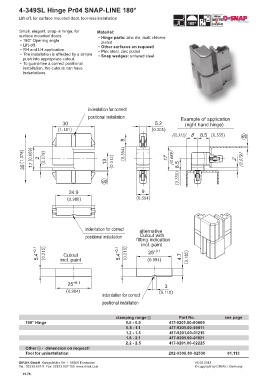

4-349SL Hinge Pr04 SNAP-LINE 180°

Lift-off, for surface mounted door, tool-less installation

Small, elegant, snap-in hinge, for Material:
surface mounted doors. • Hinge parts: zinc die, matt chrome
• 180° Opening angle. plated
• Lift-off. • Other surfaces on request!
• RH and LH application. • Pin: steel, zinc plated
• The installation is effected by a simple • Snap wedges: sintered steel
push into appropriate cutout.
• To guarantee a correct positional
installation, the cutouts can have
indentations.

clamping range 1 Part No. see page
180° Hinge 0.6 - 0.9 417-9201.00-00609
0.8 - 1.1 417-9201.00-00811
1.2 - 1.5 417-9201.00-01215
1.8 - 2.1 417-9201.00-01821
2.2 - 2.5 417-9201.00-02225
Other 1 - dimension on request!
Tool for uninstallation 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.78
