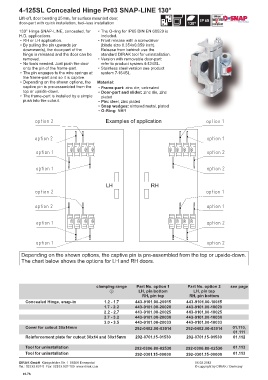

Page 76 - snapline

4-125SL Concealed Hinge Pr03 SNAP-LINE 130°

Lift-off, door bending 25mm, for surface mounted door,
door-part with quick installation, tool-less installation
130° Hinge SNAP-LINE, concealed, for • The O-ring for IP65 DIN EN 60529 is
H.D. applications. included.
• RH or LH application. • Front release with a screwdriver
• By pulling the pin upwards (or (blade size 0.354x0.059 inch).
downwards), the door-part of the Release from behind: use the
hinge is released and the door can be standard DIRAK tool for uninstallation.
removed. • Version with removable door-part:
• No tools needed. Just push the door refer to product system 4-124SL.
onto the pin of the frame-part. • Stainless steel version see product
• The pin engages to the wire springs at system 7-164SL.
the frame-part and so it is capitve.
• Depending on the shown options, the Material:
captive pin is pre-assembled from the • Frame-part: zinc die, untreated
top or upside-down. • Door-part and slider: zinc die, zinc
• The frame-part is installed by a simple plated
push into the cutout. • Pin: steel, zinc plated
• Snap wedges: sintered metal, plated
• O-Ring: NBR

clamping range Part No. option 1 Part No. option 2 see page
1 LH, pin bottom LH, pin top
RH, pin top RH, pin bottom
Concealed Hinge, snap-in 1.2 - 1.7 443-9101.00-20015 443-9101.00-10015
1.7 - 2.2 443-9101.00-20020 443-9101.00-10020
2.2 - 2.7 443-9101.00-20025 443-9101.00-10025
2.7 - 3.2 443-9101.00-20030 443-9101.00-10030
3.0 - 3.5 443-9101.00-20033 443-9101.00-10033
Cover for cutout 30x14mm 292-0402.00-03014 292-0402.00-03014 01.110,
01.111
Reinforcement plate for cutout 30x14 and 30x15mm 292-0701.15-01530 292-0701.15-01530 01.112
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 292-0301.15-00000 01.113
