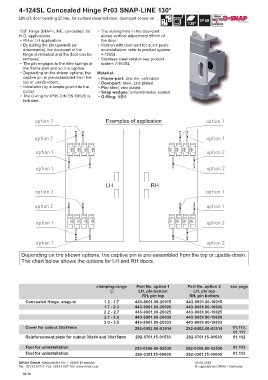

4-124SL Concealed Hinge Pr03 SNAP-LINE 130°

Lift-off, door bending 25mm, for surface mounted door, door-part screw-on

130° Hinge SNAP-LINE, concealed, for • The oblong hole in the door-part
H.D. applications. allows vertical adjustment ±5mm of
• RH or LH application. the door.
• By pulling the pin upwards (or • Version with door-part for quick push-
downwards), the door-part of the on installation: refer to product system
hinge is released and the door can be 4-125SL.
removed. • Stainless steel version see product
• The pin engages to the wire springs at system 7-164SL.
the frame-part and so it is captive.
• Depending on the shown options, the Material:
captive pin is pre-assembled from the • Frame-part: zinc die, untreated
top or upside-down. • Door-part: steel, zinc plated
• Installation by a simple push into the • Pin: steel, zinc plated
cutout. • Snap wedges: sintered metal, coated
• The O-ring for IP65 DIN EN 60529 is • O-Ring: NBR
included.

clamping range Part No. option 1 Part No. option 2 see page
1 LH, pin bottom LH, pin top
RH, pin top RH, pin bottom
Concealed Hinge, snap-in 1.2 - 1.7 443-9001.00-20015 443-9001.00-10015
1.7 - 2.2 443-9001.00-20020 443-9001.00-10020
2.2 - 2.7 443-9001.00-20025 443-9001.00-10025
2.7 - 3.2 443-9001.00-20030 443-9001.00-10030
3.0 - 3.5 443-9001.00-20033 443-9001.00-10033
Cover for cutout 30x14mm 292-0402.00-03014 292-0402.00-03014 01.110,
01.111
Reinforcement plate for cutout 30x14 and 30x15mm 292-0701.15-01530 292-0701.15-01530 01.112
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 292-0301.15-00000 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.74
