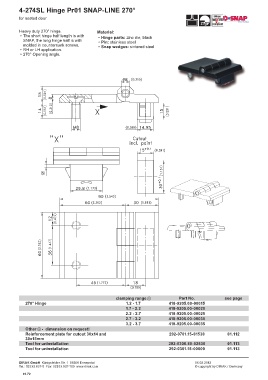

4-274SL Hinge Pr01 SNAP-LINE 270°

for nested door

Heavy duty 270° hinge. Material:
• The short hinge half length is with • Hinge parts: zinc die, black
SNAP, the long hinge half is with • Pin: stainless steel
molded in countersunk screws. • Snap wedges: sintered steel
• RH or LH application.
• 270° Opening angle.

clamping range 1 Part No. see page
270° Hinge 1.2 - 1.7 418-9205.00-00015
1.7 - 2.2 418-9205.00-00020
2.2 - 2.7 418-9205.00-00025
2.7 - 3.2 418-9205.00-00030
3.2 - 3.7 418-9205.00-00035
Other 1 - dimension on request!
Reinforcement plate for cutout 30x14 and 292-0701.15-01530 01.112
30x15mm
Tool for uninstallation 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.72
