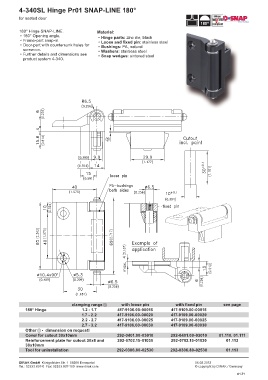

4-340SL Hinge Pr01 SNAP-LINE 180°

for nested door

180° Hinge SNAP-LINE. Material:
• 180° Opening angle. • Hinge parts: zinc die, black
• Frame-part snap-in. • Loose and fixed pin: stainless steel
• Door-part with countersunk holes for • Bushings: PA, natural
screw-on. • Washers: stainless steel
• Further details and dimensions see • Snap wedges: sintered steel
product system 4-340.

clamping range 1 with loose pin with fixed pin see page
180° Hinge 1.2 - 1.7 417-9106.00-00015 417-9109.00-00015
1.7 - 2.2 417-9106.00-00020 417-9109.00-00020
2.2 - 2.7 417-9106.00-00025 417-9109.00-00025
2.7 - 3.2 417-9106.00-00030 417-9109.00-00030
Other 1 - dimension on request!
Cover for cutout 30x10mm 292-0401.00-03010 292-0401.00-03010 01.110, 01.111
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.71
