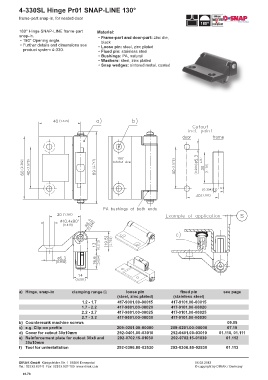

4-330SL Hinge Pr01 SNAP-LINE 130°

frame-part snap-in, for nested door

180° Hinge SNAP-LINE frame-part Material:
snap-in. • Frame-part and door-part: zinc die,
• 180° Opening angle. black
• Further details and dimensions see • Loose pin: steel, zinc plated
product system 4-330. • Fixed pin: stainless steel
• Bushings: PA, natural
• Washers: steel, zinc plated
• Snap wedges: sintered metal, coated

a) Hinge, snap-in clamping range 1 loose pin fixed pin see page
(steel, zinc plated) (stainless steel)
1.2 - 1.7 417-9001.00-00015 417-9101.00-00015
1.7 - 2.2 417-9001.00-00020 417-9101.00-00020
2.2 - 2.7 417-9001.00-00025 417-9101.00-00025
2.7 - 3.2 417-9001.00-00030 417-9101.00-00030
b) Countersunk machine screws 09.05
c) e.g. Clip-on profile 209-0201.00-00000 209-0201.00-00000 07.19
d) Cover for cutout 30x10mm 292-0401.00-03010 292-0401.00-03010 01.110, 01.111
e) Reinforcement plate for cutout 30x8 and 292-0702.15-01030 292-0702.15-01030 01.112
30x10mm
f) Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.70
