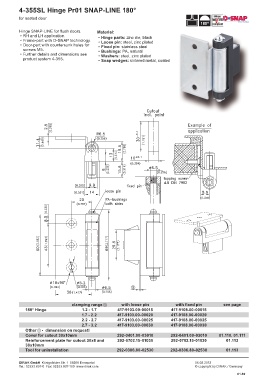

4-355SL Hinge Pr01 SNAP-LINE 180°

for nested door

Hinge SNAP-LINE for flush doors. Material:
• RH and LH application. • Hinge parts: zinc die, black
• Frame-part with D-SNAP technology. • Loose pin: steel, zinc plated
• Door-part with countersunk holes for • Fixed pin: stainless steel
screws M5. • Bushings: PA, natural
• Further details and dimensions see • Washers: steel, zinc plated
product system 4-355. • Snap wedges: sintered metal, coated

clamping range 1 with loose pin with fixed pin see page
180° Hinge 1.2 - 1.7 417-9103.00-00015 417-9108.00-00015
1.7 - 2.2 417-9103.00-00020 417-9108.00-00020
2.2 - 2.7 417-9103.00-00025 417-9108.00-00025
2.7 - 3.2 417-9103.00-00030 417-9108.00-00030
Other 1 - dimension on request!
Cover for cutout 30x10mm 292-0401.00-03010 292-0401.00-03010 01.110, 01.111
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.69
