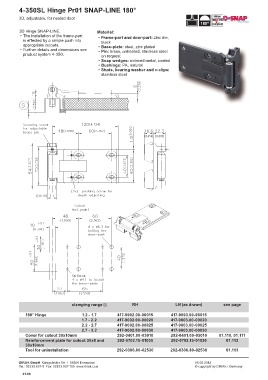

4-350SL Hinge Pr01 SNAP-LINE 180°

3D, adjustable, for nested door

3D Hinge SNAP-LINE. Material:
• The installation of the frame-part • Frame-part and door-part: zinc die,
is effected by a simple push into black
appropriate cutouts. • Base-plate: steel, zinc plated
• Further details and dimensions see • Pin: brass, untreated, stainless steel
product system 4-350. on request
• Snap wedges: sintered metal, coated
• Bushings: PA, natural
• Studs, bearing washer and c-clips:
stainless steel

clamping range 1 RH LH (as drawn) see page
180° Hinge 1.2 - 1.7 417-9002.00-00015 417-9003.00-00015
1.7 - 2.2 417-9002.00-00020 417-9003.00-00020
2.2 - 2.7 417-9002.00-00025 417-9003.00-00025
2.7 - 3.2 417-9002.00-00030 417-9003.00-00030
Cover for cutout 30x10mm 292-0401.00-03010 292-0401.00-03010 01.110, 01.111
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113
