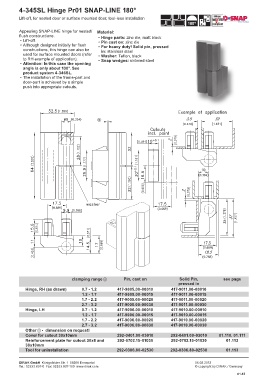

4-345SL Hinge Pr01 SNAP-LINE 180°

Lift-off, for nested door or surface mounted door, tool-less installation

Appealing SNAP-LINE hinge for nested/ Material:
flush constructions. • Hinge parts: zinc die, matt black
• Lift-off. • Pin cast on: zinc die
• Although designed initially for flush • For heavy duty! Solid pin, pressed
constructions, this hinge can also be in: stainless steel
used for surface mounted doors (refer • Washer: Teflon, black
to RH example of application). • Snap wedges: sintered steel
• Attention: In this case the opening
angle is only about 130°. See
product system 4-346SL.
• The installation of the frame-part and
door-part is achieved by a simple
push into appropriate cutouts.

clamping range 1 Pin, cast on Solid Pin, see page
pressed in
Hinge, RH (as drawn) 0.7 - 1.2 417-9005.00-00010 417-9011.00-00010
1.2 - 1.7 417-9005.00-00015 417-9011.00-00015
1.7 - 2.2 417-9005.00-00020 417-9011.00-00020
2.7 - 3.2 417-9005.00-00030 417-9011.00-00030
Hinge, LH 0.7 - 1.2 417-9006.00-00010 417-9010.00-00010
1.2 - 1.7 417-9006.00-00015 417-9010.00-00015
1.7 - 2.2 417-9006.00-00020 417-9010.00-00020
2.7 - 3.2 417-9006.00-00030 417-9010.00-00030
Other 1 - dimension on request!
Cover for cutout 30x10mm 292-0401.00-03010 292-0401.00-03010 01.110, 01.111
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.67
