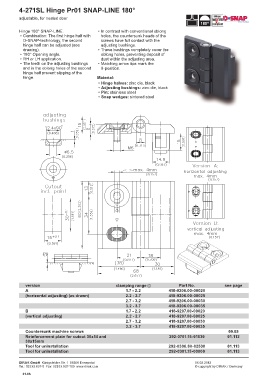

Page 66 - snapline

4-271SL Hinge Pr01 SNAP-LINE 180°

adjustable, for nested door

Hinge 180° SNAP-LINE. • In contrast with conventional oblong
• Combination: The first hinge half with holes, the countersunk heads of the
D-SNAP-technology, the second screws have full contact with the
hinge half can be adjusted (see adjusting bushings.
drawing). • These bushings completely cover the
• 180° Opening angle. oblong holes, preventing deposit of
• RH or LH application. dust within the adjusting area.
• The teeth on the adjusting bushings • Matching arrow tips mark the
and in the oblong holes of the second 0-position.
hinge half prevent slipping of the
hinge. Material:
• Hinge halves: zinc die, black
• Adjusting bushings: zinc die, black
• Pin: stainless steel
• Snap wedges: sintered steel

version clamping range 1 Part No. see page
A 1.7 - 2.2 418-9206.00-00020
(horizontal adjusting) (as drawn) 2.2 - 2.7 418-9206.00-00025
2.7 - 3.2 418-9206.00-00030
3.2 - 3.7 418-9206.00-00035
B 1.7 - 2.2 418-9207.00-00020
(vertical adjusting) 2.2 - 2.7 418-9207.00-00025
2.7 - 3.2 418-9207.00-00030
3.2 - 3.7 418-9207.00-00035
Countersunk machine screws 09.05
Reinforcement plate for cutout 30x14 and 292-0701.15-01530 01.112
30x15mm
Tool for uninstallation 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.66
