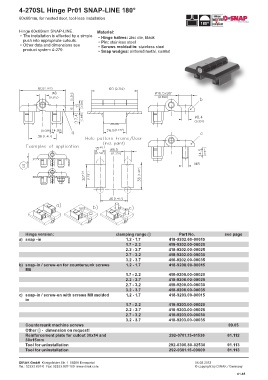

4-270SL Hinge Pr01 SNAP-LINE 180°

60x60mm, for nested door, tool-less installation

Hinge 60x60mm SNAP-LINE. Material:
• The installation is effected by a simple • Hinge halves: zinc die, black
push into appropriate cutouts. • Pin: stainless steel
• Other data and dimensions see • Screws molded in: stainless steel
product system 4-270. • Snap wedges: sintered metal, coated

Hinge version: clamping range 1 Part No. see page
a) snap -in 1.2 - 1.7 418-9202.00-00015
1.7 - 2.2 418-9202.00-00020
2.2 - 2.7 418-9202.00-00025
2.7 - 3.2 418-9202.00-00030
3.2 - 3.7 418-9202.00-00035
b) snap-in / screw-on for countersunk screws 1.2 - 1.7 418-9208.00-00015
M8
1.7 - 2.2 418-9208.00-00020
2.2 - 2.7 418-9208.00-00025
2.7 - 3.2 418-9208.00-00030
3.2 - 3.7 418-9208.00-00035
c) snap-in / screw-on with screws M8 molded 1.2 - 1.7 418-9203.00-00015
in
1.7 - 2.2 418-9203.00-00020
2.2 - 2.7 418-9203.00-00025
2.7 - 3.2 418-9203.00-00030
3.2 - 3.7 418-9203.00-00035
Countersunk machine screws 09.05
Other 1 - dimension on request!
Reinforcement plate for cutout 30x14 and 292-0701.15-01530 01.112
30x15mm
Tool for uninstallation 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.65
