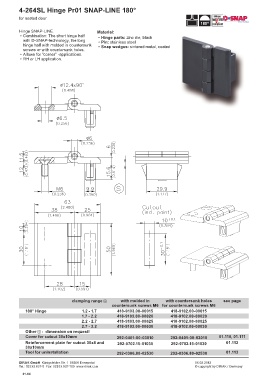

4-264SL Hinge Pr01 SNAP-LINE 180°

for nested door

Hinge SNAP-LINE. Material:
• Combination: The short hinge half • Hinge parts: zinc die, black
with D-SNAP-technology, the long • Pin: stainless steel
hinge half with molded in countersunk • Snap wedges: sintered metal, coated
screws or with countersunk holes.
• Allows for "corner" -applications.
• RH or LH application.

clamping range 1 with molded in with countersunk holes see page
countersunk screws M6 for countersunk screws M6
180° Hinge 1.2 - 1.7 418-9103.00-00015 418-9102.00-00015
1.7 - 2.2 418-9103.00-00020 418-9102.00-00020
2.2 - 2.7 418-9103.00-00025 418-9102.00-00025
2.7 - 3.2 418-9103.00-00030 418-9102.00-00030
Other 1 - dimension on request!
Cover for cutout 30x10mm 292-0401-00-03010 292-0401-00-03010 01.110, 01.111
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.64
