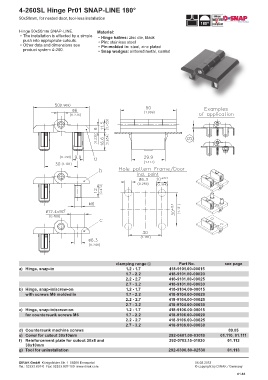

4-260SL Hinge Pr01 SNAP-LINE 180°

50x50mm, for nested door, tool-less installation

Hinge 50x50mm SNAP-LINE. Material:
• The installation is effected by a simple • Hinge halves: zinc die, black
push into appropriate cutouts. • Pin: stainless steel
• Other data and dimensions see • Pin molded in: steel, zinc plated
product system 4-260. • Snap wedges: sintered metal, coated

clamping range 1 Part No. see page
a) Hinge, snap-in 1.2 - 1.7 418-9101.00-00015
1.7 - 2.2 418-9101.00-00020
2.2 - 2.7 418-9101.00-00025
2.7 - 3.2 418-9101.00-00030
b) Hinge, snap-in/screw-on 1.2 - 1.7 418-9104.00-00015
with screws M6 molded in 1.7 - 2.2 418-9104.00-00020
2.2 - 2.7 418-9104.00-00025
2.7 - 3.2 418-9104.00-00030
c) Hinge, snap-in/screw-on 1.2 - 1.7 418-9106.00-00015
for countersunk screws M6 1.7 - 2.2 418-9106.00-00020
2.2 - 2.7 418-9106.00-00025
2.7 - 3.2 418-9106.00-00030
d) Countersunk machine screws 09.05
e) Cover for cutout 30x10mm 292-0401.00-03010 01.110, 01.111
f) Reinforcement plate for cutout 30x8 and 292-0702.15-01030 01.112
30x10mm
g) Tool for uninstallation 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.63
