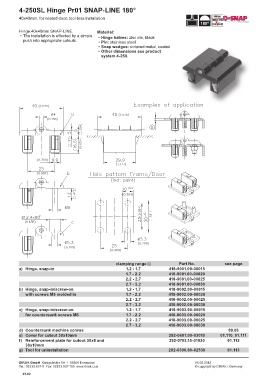

4-250SL Hinge Pr01 SNAP-LINE 180°

40x40mm, for nested door, tool-less installation

Hinge 40x40mm SNAP-LINE. Material:
• The installation is effected by a simple • Hinge halves: zinc die, black
push into appropriate cutouts. • Pin: stainless steel
• Snap wedges: sintered metal, coated
• Other dimensions see product
system 4-250.

clamping range 1 Part No. see page
a) Hinge, snap-in 1.2 - 1.7 418-9001.00-00015
1.7 - 2.2 418-9001.00-00020
2.2 - 2.7 418-9001.00-00025
2.7 - 3.2 418-9001.00-00030
b) Hinge, snap-in/screw-on 1.2 - 1.7 418-9002.00-00015
with screws M5 molded in 1.7 - 2.2 418-9002.00-00020
2.2 - 2.7 418-9002.00-00025
2.7 - 3.2 418-9002.00-00030
c) Hinge, snap-in/screw-on 1.2 - 1.7 418-9003.00-00015
for countersunk screws M5 1.7 - 2.2 418-9003.00-00020
2.2 - 2.7 418-9003.00-00025
2.7 - 3.2 418-9003.00-00030
d) Countersunk machine screws 09.05
e) Cover for cutout 30x10mm 292-0401.00-03010 01.110, 01.111
f) Reinforcement plate for cutout 30x8 and 292-0702.15-01030 01.112
30x10mm
g) Tool for uninstallation 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.62
