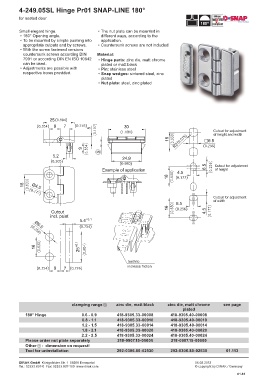

4-249.05SL Hinge Pr01 SNAP-LINE 180°

for nested door

Small elegant hinge. • The nut plate can be mounted in
• 180° Opening angle. different ways, according to the
• To be mounted by simple pushing into application.
appropriate cutouts and by screws. • Countersunk screws are not included!
• With the screw fastened versions
countersunk screws according DIN Material:
7991 or according DIN EN ISO 10642 • Hinge parts: zinc die, matt chrome
can be used. plated or matt black
• Adjustments are possible with • Pin: stainless steel
respective bores provided. • Snap wedges: sintered steel, zinc
plated
• Nut plate: steel, zinc plated

clamping range 1 zinc die, matt black zinc die, matt chrome see page
plated
180° Hinge 0.6 - 0.9 418-9305.33-00008 418-9305.40-00008
0.8 - 1.1 418-9305.33-00010 418-9305.40-00010
1.2 - 1.5 418-9305.33-00014 418-9305.40-00014
1.8 - 2.1 418-9305.33-00020 418-9305.40-00020
2.2 - 2.5 418-9305.33-00024 418-9305.40-00024
Please order nut plate separately 218-0907.15-00000 218-0907.15-00000
Other 1 - dimension on request!
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.61
