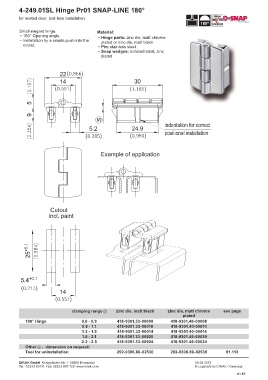

4-249.01SL Hinge Pr01 SNAP-LINE 180°

for nested door, tool-less installation

Small elegant hinge. Material:
• 180° Opening angle. • Hinge parts: zinc die, matt chrome
• Installation by a simple push into the plated or zinc die, matt black
cutout. • Pin: stainless steel
• Snap wedges: sintered steel, zinc
plated

clamping range 1 zinc die, matt black zinc die, matt chrome see page
plated
180° Hinge 0.6 - 0.9 418-9301.33-00008 418-9301.40-00008
0.8 - 1.1 418-9301.33-00010 418-9301.40-00010
1.2 - 1.5 418-9301.33-00014 418-9301.40-00014
1.8 - 2.1 418-9301.33-00020 418-9301.40-00020
2.2 - 2.5 418-9301.33-00024 418-9301.40-00024
Other 1 - dimension on request!
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113
