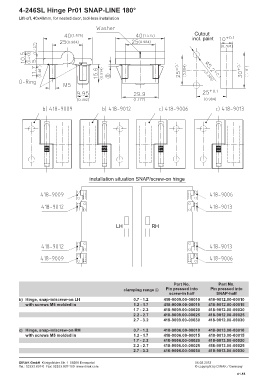

4-246SL Hinge Pr01 SNAP-LINE 180°

Lift-off, 40x40mm, for nested door, tool-less installation

Part No. Part No.
Pin pressed into Pin pressed into
clamping range 1
screw-in half SNAP-half
b) Hinge, snap-in/screw-on LH 0.7 - 1.2 418-9009.00-00010 418-9012.00-00010
with screws M5 molded in 1.2 - 1.7 418-9009.00-00015 418-9012.00-00015
1.7 - 2.2 418-9009.00-00020 418-9012.00-00020
2.2 - 2.7 418-9009.00-00025 418-9012.00-00025
2.7 - 3.2 418-9009.00-00030 418-9012.00-00030

c) Hinge, snap-in/screw-on RH 0.7 - 1.2 418-9006.00-00010 418-9013.00-00010
with screws M5 molded in 1.2 - 1.7 418-9006.00-00015 418-9013.00-00015
1.7 - 2.2 418-9006.00-00020 418-9013.00-00020
2.2 - 2.7 418-9006.00-00025 418-9013.00-00025
2.7 - 3.2 418-9006.00-00030 418-9013.00-00030
