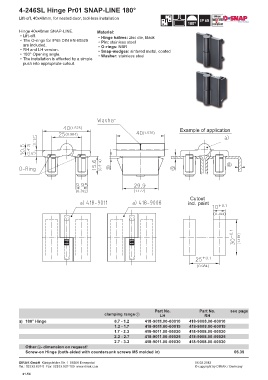

4-246SL Hinge Pr01 SNAP-LINE 180°

Lift-off, 40x40mm, for nested door, tool-less installation

Hinge 40x40mm SNAP-LINE. Material:
• Lift-off. • Hinge halves: zinc die, black
• The O-rings for IP65 DIN EN 60529 • Pin: stainless steel
are included. • O-rings: NBR
• RH and LH version. • Snap-wedges: sintered metal, coated
• 180° Opening angle. • Washer: stainless steel
• The installation is effected by a simple
push into appropriate cutout.

Part No. Part No. see page
clamping range 1 LH RH
a) 180° Hinge 0.7 - 1.2 418-9011.00-00010 418-9008.00-00010
1.2 - 1.7 418-9011.00-00015 418-9008.00-00015
1.7 - 2.2 418-9011.00-00020 418-9008.00-00020
2.2 - 2.7 418-9011.00-00025 418-9008.00-00025
2.7 - 3.2 418-9011.00-00030 418-9008.00-00030
Other 1- dimension on request!
Screw-on Hinge (both-sided with countersunk screws M5 molded in) 06.39

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.54
