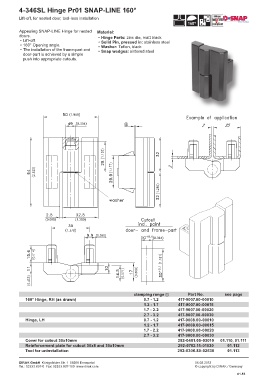

4-346SL Hinge Pr01 SNAP-LINE 160°

Lift-off, for nested door, tool-less installation

Appealing SNAP-LINE Hinge for nested Material:
doors. • Hinge Parts: zinc die, matt black
• Lift-off. • Solid Pin, pressed in: stainless steel
• 160° Opening angle. • Washer: Teflon, black
• The installation of the frame-part and • Snap wedges: sintered steel
door-part is achieved by a simple
push into appropriate cutouts.

clamping range 1 Part No. see page
160° Hinge, RH (as drawn) 0.7 - 1.2 417-9007.00-00010
1.2 - 1.7 417-9007.00-00015
1.7 - 2.2 417-9007.00-00020
2.7 - 3.2 417-9007.00-00030
Hinge, LH 0.7 - 1.2 417-9008.00-00010
1.2 - 1.7 417-9008.00-00015
1.7 - 2.2 417-9008.00-00020
2.7 - 3.2 417-9008.00-00030
Cover for cutout 30x10mm 292-0401.00-03010 01.110, 01.111
Reinforcement plate for cutout 30x8 and 30x10mm 292-0702.15-01030 01.112
Tool for uninstallation 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.53
