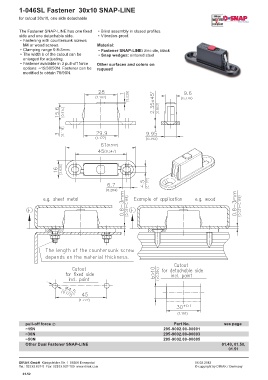

1-046SL Fastener 30x10 SNAP-LINE

for cutout 30x10, one side detachable

The Fastener SNAP-LINE has one fixed • Blind assembly in closed profiles.
side and one detachable side. • Vibration-proof.
• Fastening with countersunk screws
M4 or wood screws. Material:
• Clamping range 0.8-3mm. • Fastener SNAP-LINE: zinc die, black
• The width b of the cutout can be • Snap wedges: sintered steel
enlarged for adjusting.
• Fastener available in 3 pull-off force Other surfaces and colors on
options: ~15/30/50N. Fastener can be request!
modified to obtain 70/90N.

Part No. see page
pull-off force 
~15N 295-9002.00-00001
~30N 295-9002.00-00003
~50N 295-9002.00-00005
Other Dual Fastener SNAP-LINE 01.49, 01.50,
01.51

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.52
