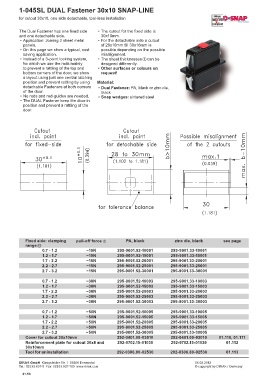

1-045SL DUAL Fastener 30x10 SNAP-LINE

for cutout 30x10, one side detachable, tool-less installation

The Dual Fastener has one fixed side • The cutout for the fixed side is
and one detachable side. 30x10mm.
• Application: Joining 2 sheet metal • For the detachable side a cutout
panels. of 28x10mm till 30x16mm is
• On this page we show a typical, cost possible depending on the possible
saving application. misalignment.
• Instead of a 3-point locking system, • The sheet thicknesses 1 can be
for which we use the rods mainly designed differently.
to prevent a rattling of the top and • Other surfaces or colours on
bottom corners of the door, we show request!
a layout using just one central latching
position and prevent rattling by using Material:
detachable Fasteners at both corners • Dual Fastener: PA, black or zinc die,
of the door. black
• No rods and rod-guides are needed. • Snap wedges: sintered steel
• The DUAL Fastener keep the door in
position and prevent a rattling of the
door.

Fixed side: clamping pull-off force  PA, black zinc die, black see page
range 2
0.7 - 1.2 ~15N 295-9001.52-10001 295-9001.33-10001
1.2 - 1.7 ~15N 295-9001.52-15001 295-9001.33-15001
1.7 - 2.2 ~15N 295-9001.52-20001 295-9001.33-20001
2.2 - 2.7 ~15N 295-9001.52-25001 295-9001.33-25001
2.7 - 3.2 ~15N 295-9001.52-30001 295-9001.33-30001

0.7 - 1.2 ~30N 295-9001.52-10003 295-9001.33-10003
1.2 - 1.7 ~30N 295-9001.52-15003 295-9001.33-15003
1.7 - 2.2 ~30N 295-9001.52-20003 295-9001.33-20003
2.2 - 2.7 ~30N 295-9001.52-25003 295-9001.33-25003
2.7 - 3.2 ~30N 295-9001.52-30003 295-9001.33-30003

0.7 - 1.2 ~50N 295-9001.52-10005 295-9001.33-10005
1.2 - 1.7 ~50N 295-9001.52-15005 295-9001.33-15005
1.7 - 2.2 ~50N 295-9001.52-20005 295-9001.33-20005
2.2 - 2.7 ~50N 295-9001.52-25005 295-9001.33-25005
2.7 - 3.2 ~50N 295-9001.52-30005 295-9001.33-30005
Cover for cutout 30x10mm 292-0401.00-03010 292-0401.00-03010 01.110, 01.111
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.50
