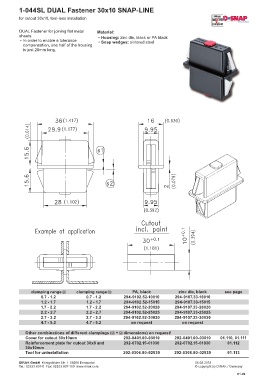

1-044SL DUAL Fastener 30x10 SNAP-LINE

for cutout 30x10, tool-less installation

DUAL Fastener for joining flat metal Material:
sheets. • Housing: zinc die, black or PA black
• In order to enable a tolerance • Snap wedges: sintered steel
compensation, one half of the housing
is just 28mm long.

clamping range 2 clamping range 3 PA, black zinc die, black see page
0.7 - 1.2 0.7 - 1.2 294-9102.52-10010 294-9107.33-10010
1.2 - 1.7 1.2 - 1.7 294-9102.52-15015 294-9107.33-15015
1.7 - 2.2 1.7 - 2.2 294-9102.52-20020 294-9107.33-20020
2.2 - 2.7 2.2 - 2.7 294-9102.52-25025 294-9107.33-25025
2.7 - 3.2 2.7 - 3.2 294-9102.52-30030 294-9107.33-30030
4.7 - 5.2 4.7 - 5.2 on request on request
Other combinations of different clampings (2 + 3 dimensions) on request!
Cover for cutout 30x10mm 292-0401.00-03010 292-0401.00-03010 01.110, 01.111
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113
