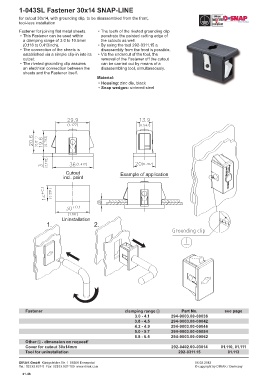

1-043SL Fastener 30x14 SNAP-LINE

for cutout 30x14, with grounding clip, to be disassembled from the front,
tool-less installation
Fastener for joining flat metal sheets. • The teeth of the riveted grounding clip
• This Fastener can be used within penetrate the painted cutting edge of
a clamping range of 3.0 to 10.5mm the cutouts as well.
(0.118 to 0.413inch). • By using the tool 292-0311.15 a
• The connection of the sheets is disassembly from the front is possible.
established via a simple clip-in into its • Via the undercut of the tool, the
cutout. removal of the Fastener off the cutout
• The riveted grounding clip assures can be carried out by means of a
an electrical connection between the disassembling tool, simultaneously.
sheets and the Fastener itself.
Material:
• Housing: zinc die, black
• Snap wedges: sintered steel

Fastener clamping range 1 Part No. see page
3.0 - 4.1 294-9003.00-00036
3.8 - 4.5 294-9003.00-00042
4.2 - 4.9 294-9003.00-00046
5.0 - 5.7 294-9003.00-00054
5.8 - 6.5 294-9003.00-00062
Other 1 - dimension on request!
Cover for cutout 30x14mm 292-0402.00-03014 01.110, 01.111
Tool for uninstallation 292-0311.15 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.48
