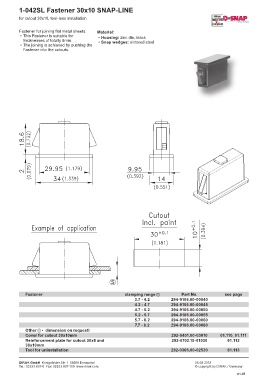

1-042SL Fastener 30x10 SNAP-LINE

for cutout 30x10, tool-less installation

Fastener for joining flat metal sheets. Material:
• This Fastener is suitable for • Housing: zinc die, black
thicknesses of totally 8mm. • Snap wedges: sintered steel
• The joining is achieved by pushing the
Fastener into the cutouts.

Fastener clamping range 1 Part No. see page
3.7 - 4.2 294-9106.00-00040
4.2 - 4.7 294-9106.00-00045
4.7 - 5.2 294-9106.00-00050
5.2 - 5.7 294-9106.00-00055
5.7 - 6.2 294-9106.00-00060
7.7 - 8.2 294-9106.00-00080
Other 1 - dimension on request!
Cover for cutout 30x10mm 292-0401.00-03010 01.110, 01.111
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.47
