P. 45

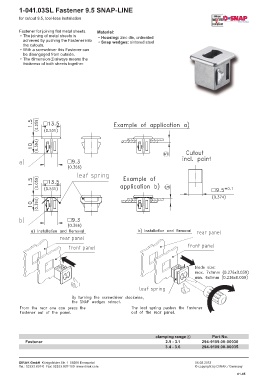

1-041.03SL Fastener 9.5 SNAP-LINE
for cutout 9.5, tool-less installation
Fastener for joining flat metal sheets. Material:
• The joining of metal sheets is • Housing: zinc die, untreated
achieved by pushing the Fastener into • Snap wedges: sintered steel
the cutouts.
• With a screwdriver this Fastener can
be disengaged from outside.
• The dimension 1 always means the
thickness of both sheets together.
clamping range 1 Part No.
Fastener 2.9 - 3.1 294-9109.00-00030
3.4 - 3.6 294-9109.00-00035
DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.45
