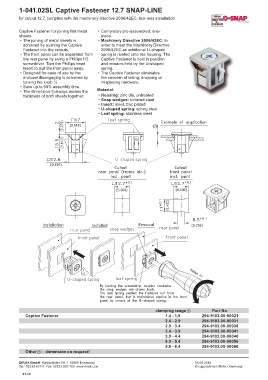

1-041.02SL Captive Fastener 12.7 SNAP-LINE

for cutout 12.7, complies with the machinery directive 2006/42EC, tool-less installation

Captive Fastener for joining flat metal • Completely pre-assembled, one-
sheets. piece.
• The joining of metal sheets is • Machinery Directive 2006/42EC: In
achieved by pushing the Captive order to meet the Machinery Directive
Fastener into the cutouts. 2006/42EC an additional U-shaped
• The front panel can be separated from spring is riveted onto the housing. The
the rear panel by using a Phillips H2 Captive Fastener is held in position
screwdriver. Turn the Phillips head and remains held by the U-shaped
insert to pull the front panel away. spring.
• Designed for ease of use by the • The Captive Fastener eliminates
enduser disengaging is achieved by the concern of losing, dropping or
turning the knob ¼. misplacing hardware.
• Save up to 90% assembly time.
• The dimension 1 always means the Material:
thickness of both sheets together. • Housing: zinc die, untreated
• Snap wedges: sintered steel
• Insert: steel, zinc plated
• U-shaped spring: spring steel
• Leaf spring: stainless steel

clamping range 1 Part No.
Captive Fastener 1.4 - 1.9 294-9103.00-00021
2.4 - 2.9 294-9103.00-00031
2.9 - 3.4 294-9103.00-00036
3.4 - 3.9 294-9103.00-00041
3.9 - 4.4 294-9103.00-00046
4.9 - 5.4 294-9103.00-00056
5.9 - 6.4 294-9103.00-00066
Other 1 - dimension on request!

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.44
