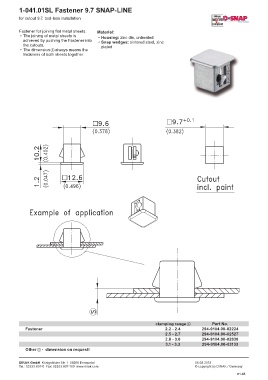

1-041.01SL Fastener 9.7 SNAP-LINE

for cutout 9.7, tool-less installation

Fastener for joining flat metal sheets. Material:
• The joining of metal sheets is • Housing: zinc die, untreated
achieved by pushing the Fastener into • Snap wedges: sintered steel, zinc
the cutouts. plated
• The dimension 1 always means the
thickness of both sheets together.

clamping range 1 Part No.
Fastener 2.2 - 2.4 294-9104.00-02224
2.5 - 2.7 294-9104.00-02527
2.8 - 3.0 294-9104.00-02830
3.1 - 3.3 294-9104.00-03133
Other 1 - dimension on request!
