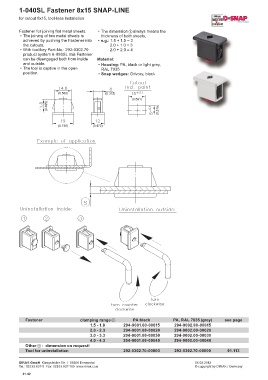

1-040SL Fastener 8x15 SNAP-LINE

for cutout 8x15, tool-less installation

Fastener for joining flat metal sheets. • The dimension 1 always means the
• The joining of two metal sheets is thickness of both sheets,
achieved by pushing the Fastener into • e.g.: 1.5 + 1.5 = 3
the cutouts. 2.0 + 1.0 = 3
• With tool/key Part-No.: 292-0302.70 2.0 + 2.0 = 4
product system 6-080SL this Fastener
can be disengaged both from inside Material:
and outside. • Housing: PA, black or light grey,
• The tool is captive in the open RAL 7035
position. • Snap wedges: Grivory, black

Fastener clamping range 1 PA black PA, RAL 7035 (grey) see page
1.5 - 1.8 294-9001.00-00015 294-9002.00-00015
2.0 - 2.3 294-9001.00-00020 294-9002.00-00020
3.0 - 3.3 294-9001.00-00030 294-9002.00-00030
4.0 - 4.3 294-9001.00-00040 294-9002.00-00040
Other 1 - dimension on request!
Tool for uninstallation 292-0302.70-00000 292-0302.70-00000 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.42
