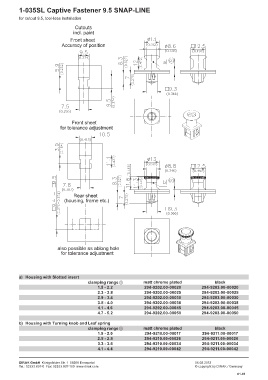

1-035SL Captive Fastener 9.5 SNAP-LINE

for cutout 9.5, tool-less installation

a) Housing with Slotted insert
clamping range 1 matt chrome plated black
1.5 - 2.2 294-9202.00-00020 294-9203.00-00020
2.3 - 2.8 294-9202.00-00025 294-9203.00-00025
2.9 - 3.4 294-9202.00-00030 294-9203.00-00030
3.5 - 4.0 294-9202.00-00038 294-9203.00-00038
4.1 - 4.6 294-9202.00-00045 294-9203.00-00045
4.7 - 5.2 294-9202.00-00050 294-9203.00-00050

b) Housing with Turning knob and Leaf spring
clamping range 1 matt chrome plated black
1.5 - 2.0 294-9210.00-00017 294-9211.00-00017
2.5 - 2.8 294-9210.00-00026 294-9211.00-00026
3.3 - 3.6 294-9210.00-00034 294-9211.00-00034
4.1 - 4.4 294-9210.00-00042 294-9211.00-00042
