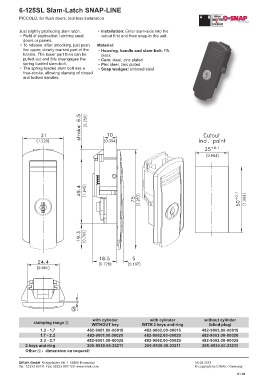

6-125SL Slam-Latch SNAP-LINE

PICCOLO, for flush doors, tool-less installation

Just slightly protruding slam latch. • Installation: Enter slam-side into the
• Field of application: latching small cutout first and then snap-in the unit.
doors or panels.
• To release: after unlocking, just push Material:
the upper, clearly marked part of the • Housing, handle and slam-bolt: PA,
handle. The lower part then can be black
pulled-out and this disengages the • Cam: steel, zinc plated
spring loaded slam-bolt. • Pin: steel, zinc plated
• The spring-loaded slam bolt has a • Snap wedges: sintered steel
free-stroke, allowing slaming of closed
and locked handles.

with cylinder with cylinder without cylinder
clamping range 1 WITHOUT key WITH 2 keys and ring (blind plug)
1.2 - 1.7 482-9001.00-00015 482-9002.00-00015 482-9003.00-00015
1.7 - 2.2 482-9001.00.00020 482-9002.00-00020 482-9003.00-00020
2.2 - 2.7 482-9001.00-00025 482-9002.00-00025 482-9003.00-00025
2 keys and ring 205-9530.00-23211 205-9530.00-23211 205-9530.00-23211
Other 1 - dimension on request!

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.39
