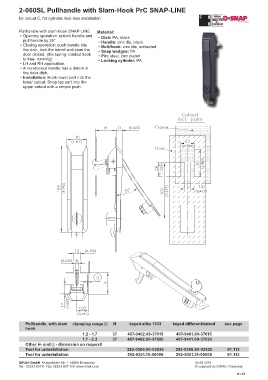

2-060SL Pullhandle with Slam-Hook PrC SNAP-LINE

for cutout C, for cylinder, tool-less installation

Pullhandle with slam-hook SNAP-LINE. Material:
• Opening operation: unlock handle and • Dish: PA, black
pull handle by 35°. • Handle: zinc die, black
• Closing operation: push handle into • Bolt/hook: zinc die, untreated
the dish, lock the barrel and slam the • Snap wedges: PA
door closed. (the spring- loaded hook • Pin: steel, zinc plated
is free- running) • Locking cylinder: PA
• LH and RH application.
• A non-locked handle has a detent in
the door-dish.
• Installation: Hook lower part into the
lower cutout. Snap top part into the
upper cutout with a simple push.

Pullhandle, with slam clamping range 1 H keyed alike 1333 keyed different/mixed see page
hook
1.2 - 1.7 37 407-9402.00-37015 407-9401.00-37015
1.7 - 2.2 37 407-9402.00-37020 407-9401.00-37020
Other H- and 1 - dimension on request!
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 292-0301.15-00000 01.113
