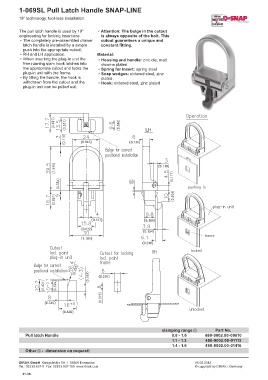

1-069SL Pull Latch Handle SNAP-LINE

19" technology, tool-less installation

The pull latch handle is used by 19" • Attention: The bulge in the cutout
engineering for locking insertions. is always opposite of the bolt. This
• The completely pre-assembled drawer cutout guarantees a unique and
latch handle is installed by a simple constant fitting.
push into the appropriate cutout.
• RH and LH application. Material:
• When inserting the plug-in unit the • Housing and handle: zinc die, matt
free running slam hook latches into chrome plated
the appropriate cutout and locks the • Spring for insert: spring steel
plug-in unit with the frame. • Snap wedges: sintered steel, zinc
• By tilting the handle, the hook is plated
withdrawn from the cutout and the • Hook: sintered steel, zinc plated
plug-in unit can be pulled out.

clamping range 1 Part No.
Pull latch Handle 0.8 - 1.0 480-9002.00-00810
1.1 - 1.3 480-9002.00-01113
1.4 - 1.6 480-9002.00-01416
Other 1 - dimension on request!

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.36
