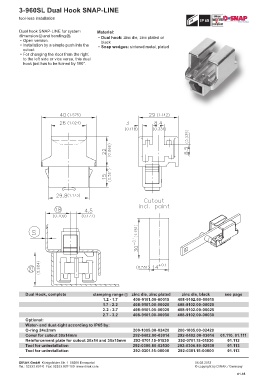

3-960SL Dual Hook SNAP-LINE

tool-less installation

Dual hook SNAP-LINE for system Material:
dimension 5 and bending 8. • Dual hook: zinc die, zinc plated or
• Open version. black
• Installation by a simple push into the • Snap wedges: sintered metal, plated
cutout.
• For changing the door from the right
to the left side or vice versa, this dual
hook just has to be turned by 180°.

Dual Hook, complete clamping range 1 zinc die, zinc plated zinc die, black see page
1.2 - 1.7 408-9101.00-00015 408-9102.00-00015
1.7 - 2.2 408-9101.00-00020 408-9102.00-00020
2.2 - 2.7 408-9101.00-00025 408-9102.00-00025
2.7 - 3.2 408-9101.00-00030 408-9102.00-00030
Optional:
Water- and dust-tight according to IP65 by:
O-ring 24x2mm 200-1005.00-02420 200-1005.00-02420
Cover for cutout 30x14mm 292-0402.00-03014 292-0402.00-03014 01.110, 01.111
Reinforcement plate for cutout 30x14 and 30x15mm 292-0701.15-01530 292-0701.15-01530 01.112
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 292-0301.15-00000 01.113
