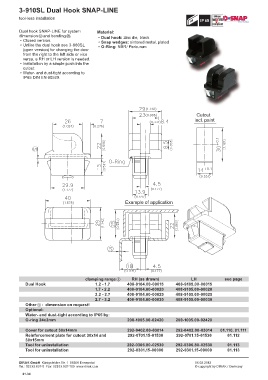

3-910SL Dual Hook SNAP-LINE

tool-less installation

Dual hook SNAP-LINE for system Material:
dimension 5 and bending 8. • Dual hook: zinc die, black
• Closed version. • Snap wedges: sintered metal, plated
• Unlike the dual hook see 3-960SL • O-Ring: NBR/ Perbunan
(open version) for changing the door
from the right to the left side or vice
versa, a RH or LH version is needed.
• Installation by a simple push into the
cutout.
• Water- and dust-tight according to
IP65 DIN EN 60529.

clamping range 1 RH (as drawn) LH see page
Dual Hook 1.2 - 1.7 408-9104.00-00015 408-9105.00-00015
1.7 - 2.2 408-9104.00-00020 408-9105.00-00020
2.2 - 2.7 408-9104.00-00025 408-9105.00-00025
2.7 - 3.2 408-9104.00-00030 408-9105.00-00030
Other 1 - dimension on request!
Optional:
Water- and dust-tight according to IP65 by:
O-ring 24x2mm 200-1005.00-02420 200-1005.00-02420

Cover for cutout 30x14mm 292-0402.00-03014 292-0402.00-03014 01.110, 01.111
Reinforcement plate for cutout 30x14 and 292-0701.15-01530 292-0701.15-01530 01.112
30x15mm
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 292-0301.15-00000 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.34
