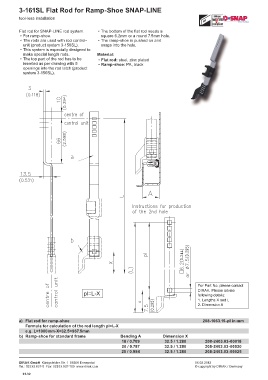

3-161SL Flat Rod for Ramp-Shoe SNAP-LINE

tool-less installation

Flat rod for SNAP-LINE rod system. • The bottom of the flat rod needs a
• For ramp-shoe. square 6.2mm or a round 7.5mm hole.
• The rods are used with rod control- • The ramp-shoe is pushed on and
unit (product system 3-150SL). snaps into the hole.
• This system is especially designed to
make special length rods. Material:
• The top part of the rod has to be • Flat rod: steel, zinc plated
inserted as per drawing with 5 • Ramp-shoe: PA, black
openings into the rod latch (product
system 3-150SL).

a) Flat rod for ramp-shoe 208-1063.15-pl in mm
Formula for calculation of the rod length pl=L-X
e.g. L=1000mm-X=32.5=967.5mm
b) Ramp-shoe for standard frame Bending A Dimension X
18 / 0.709 32.5 / 1.280 208-2403.03-00018
20 / 0.787 32.5 / 1.280 208-2403.03-00020
25 / 0.984 32.5 / 1.280 208-2403.03-00025
