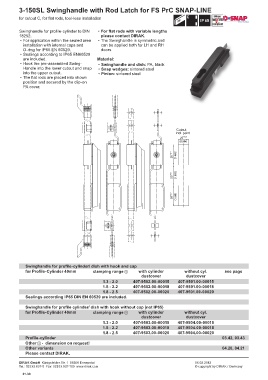

3-150SL Swinghandle with Rod Latch for FS PrC SNAP-LINE

for cutout C, for flat rods, tool-less installation

Swinghandle for profile-cylinder to DIN • For flat rods with variable lengths
18252. please contact DIRAK.
• For application within the sealed area • The Swinghandle is symmetric and
installation with internal caps and can be applied both for LH and RH
O-ring for IP65 EN 60529. doors.
• Sealings according to IP65 EN60529
are included. Material:
• Hook the pre-assembled Swing- • Swinghandle and dish: PA, black
Handle into the lower cutout and snap • Snap wedges: sintered steel
into the upper cutout. • Pinion: sintered steel
• The flat rods are placed into shown
position and secured by the clip-on
PA cover.

Swinghandle for profile-cylinder/ dish with hook and cap
for Profile-Cylinder 40mm clamping range 1 with cylinder without cyl. see page
dustcover dustcover
1.3 - 2.0 407-9502.00-00015 407-9501.00-00015
1.5 - 2.2 407-9502.00-00018 407-9501.00-00018
1.8 - 2.5 407-9502.00-00020 407-9501.00-00020
Sealings according IP65 DIN EN 60529 are included.
Swinghandle for profile cylinder/ dish with hook without cap (not IP65)
for Profile-Cylinder 40mm clamping range 1 with cylinder without cyl.
dustcover dustcover
1.3 - 2.0 407-9503.00-00015 407-9504.00-00015
1.5 - 2.2 407-9503.00-00018 407-9504.00-00018
1.8 - 2.5 407-9503.00-00020 407-9504.00-00020
Profile-cylinder 03.42, 03.43
Other 1 - dimension on request!
Other variants 04.20, 04.21
Please contact DIRAK.
