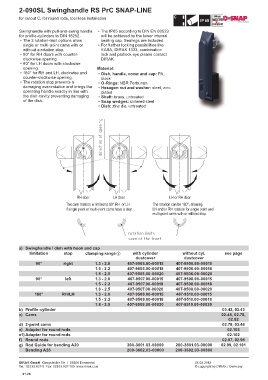

2-090SL Swinghandle RS PrC SNAP-LINE

for cutout C, for round rods, tool-less installation

Swinghandle with pull-and-swing handle • The IP65 according to DIN EN 60529
for profile-cylinders to DIN 18252. will be achieved by the lower internal
• The 3 rotation-limit options allow sealing cap. Sealings are included.
single or multi-point cams with or • For further locking possibilities like
without a rotation stop. KABA, DIRAK 1333, combination
• 90° for RH doors with counter- lock and padlock eye please contact
clockwise opening. DIRAK.
• 90° for LH doors with clockwise
opening. Material:
• 180° for RH and LH, clockwise and • Dish, handle, cover and cap: PA,
counter-clockwise opening. black
• The rotation stop prevents a • O-Rings: NBR Perbunan
damaging over-rotation and brings the • Hexagon nut and washer: steel, zinc
operating handle exactly in line with plated
the dish-cavity preventing damaging • Shaft: brass, untreated
of the dish. • Snap wedges: sintered steel
• Dish: zinc die, untreated

a) Swinghandle / dish with hook and cap
limitation stop clamping range 1 with cylinder without cyl. see page
dustcover dustcover
90° right 1.3 - 2.0 407-9505.00-00015 407-9506.00-00015
1.5 - 2.2 407-9505.00-00018 407-9506.00-00018
1.8 - 2.5 407-9505.00-00020 407-9506.00-00020
90° left 1.3 - 2.0 407-9507.00-00015 407-9508.00-00015
1.5 - 2.2 407-9507.00-00018 407-9508.00-00018
1.8 - 2.5 407-9507.00-00020 407-9508.00-00020
180° RH/LH 1.3 - 2.0 407-9509.00-00015 407-9510.00-00015
1.5 - 2.2 407-9509.00-00018 407-9510.00-00018
1.8 - 2.5 407-9509.00-00020 407-9510.00-00020
b) Profile-cylinder 03.42, 03.43
c) Cams 02.45, 02.78,
02.82
d) 3-point cams 02.78, 03.46
e) Adapter for round rods 02.103
e1) Adapter for round rods 02.102
f) Round rods 02.97, 02.98
g) Rod Guide for bending A20 200-3601.03-00000 200-3601.03-00000 02.99, 02.101
Bending A26 200-3602.03-00000 200-3602.03-00000

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.28
