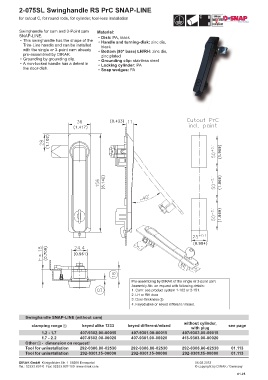

2-075SL Swinghandle RS PrC SNAP-LINE

for cutout C, for round rods, for cylinder, tool-less installation

Swinghandle for cam and 3-Point cam Material:
SNAP-LINE. • Dish: PA, black
• This swinghandle has the shape of the • Handle and turning-disk: zinc die,
Trim-Line handle and can be installed black
with the single or 3-point cam already • Bottom (90° base) LH/RH: zinc die,
pre-assembled by DIRAK. zinc plated
• Grounding by grounding clip. • Grounding clip: stainless steel
• A non-locked handle has a detent in • Locking cylinder: PA
the door-dish. • Snap wedges: PA

Swinghandle SNAP-LINE (without cam)
without cylinder,
clamping range 1 keyed alike 1333 keyed different/mixed see page
with plug
1.2 - 1.7 407-9302.00-00015 407-9301.00-00015 407-9303.00-00015
1.7 - 2.2 407-9302.00-00020 407-9301.00-00020 413-9303.00-00020
Other 1 - dimension on request!
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 292-0301.15-00000 292-0301.15-00000 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.25
