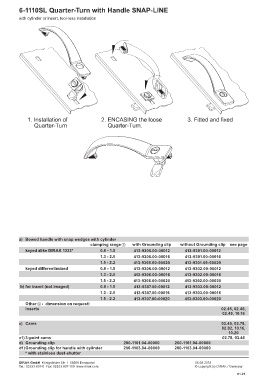

6-1110SL Quarter-Turn with Handle SNAP-LINE
with cylinder or insert, tool-less installation
a) Bowed handle with snap wedges with cylinder
clamping range 1 with Grounding clip without Grounding clip see page
keyed alike DIRAK 1333* 0.8 - 1.5 413-9305.00-00012 413-9301.00-00012
1.3 - 2.0 413-9305.00-00016 413-9301.00-00016
1.5 - 2.2 413-9305.00-00020 413-9301.00-00020
keyed different/mixed 0.8 - 1.5 413-9306.00-00012 413-9302.00-00012
1.3 - 2.0 413-9306.00-00016 413-9302.00-00016
1.5 - 2.2 413-9306.00-00020 413-9302.00-00020
b) for insert (not imaged) 0.8 - 1.5 413-9307.00-00012 413-9303.00-00012
1.3 - 2.0 413-9307.00-00016 413-9303.00-00016
1.5 - 2.2 413-9307.00-00020 413-9303.00-00020
Other 1 - dimension on request!
Inserts 02.45, 02.48,
02.49, 10.16
c) Cams 02.45, 02.78,
02.82, 10.16,
10.20
c1) 3-point cams 02.78, 03.46
d) Grounding clip 200-1101.04-00000 200-1101.04-00000
d1)Grounding clip for handle with cylinder 200-1103.04-00000 200-1103.04-00000
* with stainless dust-shutter
