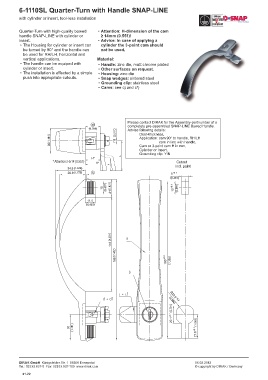

6-1110SL Quarter-Turn with Handle SNAP-LINE

with cylinder or insert, tool-less installation

Quarter-Turn with high-quality bowed • Attention: H-dimension of the cam
handle SNAP-LINE with cylinder or ≥ 14mm (0.551)!
insert. • Advice: In case of applying a
• The Housing for cylinder or insert can cylinder the 3-point cam should
be turned by 90° and the handle can not be used.
be used for RH/LH, horizontal and
vertical applications. Material:
• The handle can be equiped with • Handle: zinc die, matt chrome plated
cylinder or insert. • Other surfaces on request.
• The installation is effected by a simple • Housing: zinc die
push into appropriate cutouts. • Snap wedges: sintered steel
• Grounding clip: stainless steel
• Cams: see c) and c¹)

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.22
