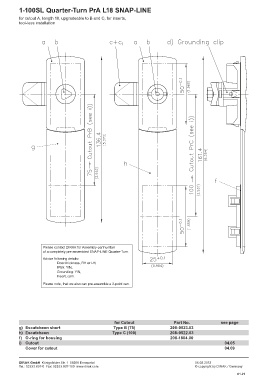

1-100SL Quarter-Turn PrA L18 SNAP-LINE

for cutout A, length 18, upgradeable to B and C, for inserts,
tool-less installation

for Cutout Part No. see page
g) Escutcheon short Type B (75) 208-0523.03
h) Escutcheon Type C (100) 208-0522.03
f) O-ring for housing 208-1804.00
i) Cutout 04.05
Cover for cutout 04.09
