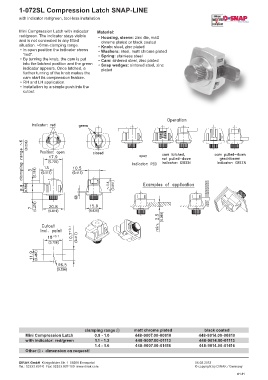

1-072SL Compression Latch SNAP-LINE

with indicator red/green, tool-less installation

Mini Compression Latch with indicator Material:
red/green. The indicator stays visible • Housing, sleeve: zinc die, matt
and is not concealed in any fitted chrome plated or black coated
situation. ~6mm clamping range. • Knob: steel, zinc plated
• In open position the indicator shows • Washers: steel, matt chrome plated
"red". • Spring: stainless steel
• By turning the knob, the cam is put • Cam: sintered steel, zinc plated
into the latched position and the green • Snap wedges: sintered steel, zinc
indicator appears. Once latched, a plated
further turning of the knob makes the
cam start its compression feature.
• RH and LH application.
• Installation by a simple push into the
cutout.

clamping range 1 matt chrome plated black coated
Mini Compression Latch 0.8 - 1.0 448-9007.00-00810 448-9014.00-00810
with indicator: red/green 1.1 - 1.3 448-9007.00-01113 448-9014.00-01113
1.4 - 1.6 448-9007.00-01416 448-9014.00-01416
Other 1 - dimension on request!
