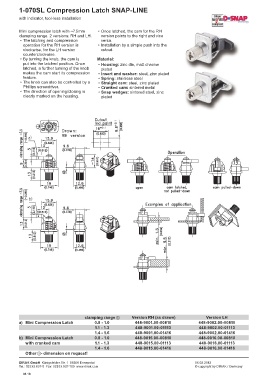

1-070SL Compression Latch SNAP-LINE

with indicator, tool-less installation

Mini compression latch with ~7.5mm • Once latched, the cam for the RH
clamping range. 2 versions: RH and LH. version points to the right and vice
• The latching and compression versa.
operation for the RH version is • Installation by a simple push into the
clockwise, for the LH version cutout.
counterclockwise.
• By turning the knob, the cam is Material:
put into the latched position. Once • Housing: zinc die, matt chrome
latched, a further turning of the knob plated
makes the cam start its compression • Insert and washer: steel, zinc plated
feature. • Spring: stainless steel
• The knob can also be controlled by a • Straight cam: steel, zinc plated
Phillips screwdriver. • Cranked cam: sintered metal
• The direction of opening/closing is • Snap wedges: sintered steel, zinc
clearly marked on the housing. plated

clamping range 1 Version RH (as drawn) Version LH
a) Mini Compression Latch 0.8 - 1.0 448-9001.00-00810 448-9002.00-00810
1.1 - 1.3 448-9001.00-01113 448-9002.00-01113
1.4 - 1.6 448-9001.00-01416 448-9002.00-01416
b) Mini Compression Latch 0.8 - 1.0 448-9015.00-00810 448-9016.00-00810
with cranked cam 1.1 - 1.3 448-9015.00-01113 448-9016.00-01113
1.4 - 1.6 448-9015.00-01416 448-9016.00-01416
Other 1- dimension on request!

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.10
